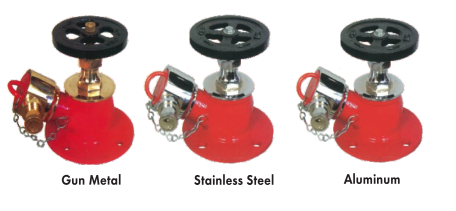

(Type "A") ISI marked
TECHNICAL SPECIFICATION
- Size : 63mm
- Inlet : 80mm NB Flanged
- Outlet : Female Intantaneous
- Comforming Specification : 5290 : 1993
PERFORMANCE TEST
- Hydraulic Test : 21Kgf/cm2
- Water Tightness Test : 15Kgf/cm2
- Flow Test : 900 LPM at 7Kgf/cm2
| TYPE OF MATERIAL | STAINLESS STEEL | GUN METAL | ALUMINIUM |
|---|---|---|---|
| BODY, ASSEMBLY | STAINLESS STEEL IS : 3444 | LBT 2 IS : 318 | IS 617 |
| VALVE SPINDLE | STAINLESS STEEL IS : 6603 | BRASS ROD : 319/320 | STAINLESS STEEL IS : 6603 |
| CAST IRON WHEEL | IS : 210 | IS : 210 | IS : 210 |
| RUBBER WASHER | IS : 937 (TYPE-A) | IS : 937 (TYPE-A) | IS : 937 (TYPE-A) |
| SPRING | STAINLESS STEEL IS : 6528 | PHOSPHORUS WIRE IS : 7608 | STAINLESS STEEL IS : 6528 |
| GLAND PACKING-ASBESTOS THREAD | IS : 4687 (TYPE-3) | IS : 4687 (TYPE-3) | IS : 4687 (TYPE-3) |
Hand Wheel : Gray Cast iron
Halogram : Sticker Stuck on Landing Valve

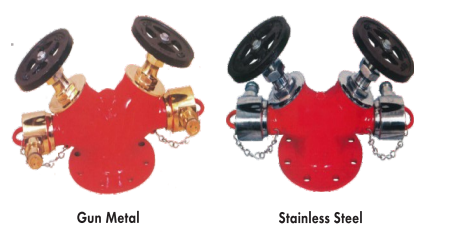

DOUBLE OUTLET LANDING VALVE
TECHNICAL SPECIFICATION
- Size of Branch Pipe : 63 mm
- Inlet : 100mm NB Flanged
- Outlet : Female Instantaneous
- Material : Gun metal / Stainless Steel
- Comforming Specification : IS 5290:1993
PERFORMANCE TEST
- Hydraulic Test : Tested at 21Kgf/cm2
- Water Tightness Test : 14Kgf/cm2
- Flow Test : 1800 LPM at 7Kgf/cm2
| TYPE OF MATERIAL | STAINLESS STEEL | GUN METAL |
|---|---|---|
| BODY, ASSEMBLY | STAINLESS STEEL IS : 3444 | LBT 2 IS : 318 |
| VALVE SPINDLE | STAINLESS STEEL IS : 6603 | BRASS ROD IS : 319/320 |
| CAST IRON WHEEL | IS : 210 | IS : 210 |
| RUBBER WASHER | IS : 937 (TYPE-A) | IS : 937 (TYPE-A) |
| SPRING | STAINLESS STEEL IS : 6528 | PHOSPHORUS WIRE IS : 7608 |
| GLAND PACKING-ASBESTOS THREAD | IS : 4687 (TYPE-3) | IS : 4687 (TYPE-3) |
