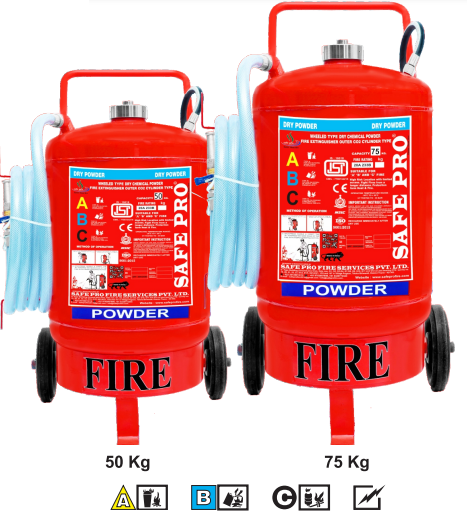

| CAPACITY | 25 kg Outside Cartridge type | 25 kg Inside Cartridge type | 50 kg Outside Cartridge type | 75 kg Outside Cartridge type |
|---|---|---|---|---|
| TYPE | Wheeled DCP ABC Type | Wheeled DCP ABC Type | Wheeled DCP ABC Type | Wheeled DCP ABC Type |
| IS NO | IS 16018 | IS 16018 | IS 16018 | IS 16018 |
| FIRE RATING | 20A 233B | 20A 233B | 20A 233B | 20A 233B |
| OPERATING TEMPRATURE | -30°c to +55°c | -30°c to +55°c | -30°c to +55°c | -30°c to +55°c |
| MIN. JET LENGTH (IN MTRS) | More than 6 Mtrs | More than 6 Mtrs | More than 6 Mtrs | More than 6 Mtrs |
| DISCHARGE PERCENTAGE | 85% | 85% | 85% | 85% |
| DISCHARGE TIME | More Than 30 sec | More Than 30 sec | More Than 30 sec | More Than 30 sec |
| CHARGE PRESSURE | 1.8Mpa | 1.8Mpa | 1.8Mpa | 1.8Mpa |
| TEST PRESSURE | 3.0Mpa | 3.0Mpa | 3.0Mpa | 3.0Mpa |
| EXTENGUISHER MEDIA | Dry powder as per IS 14609 | Dry powder as per IS 14609 | Dry powder as per IS 14609 | Dry powder as per IS 14609 |
| EXPELLANT | CO2 | CO2 | CO2 | CO2 |
| LENGTH OF HOSE PIPE | 2 mtrs | 2 mtrs | 4 mtrs | 4 mtrs |
